PRODUCT DETAIL
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1700*1600*2000mm
Power supply source: AC220V, 50Hz, single phase
Gross Weight: 300kg
HS Code: 8479899990
STANDARD FEATURES
|
Item |
Specification |
|
Internal dimension |
W1000 * D1000 * H1000mm |
|
External dimension |
W1500 * D1300 * H1900mm |
|
Testing sample |
Cables |
|
Inner chamber material |
SUS304 Stainless steel |
|
Outer chamber material |
Stainless steel |
|
Talcum powder amount |
2kg/ m³ |
|
Airflow speed |
No more than 2m/s |
|
Door |
Tempered glass door |
|
Controller |
PLC Touch Screen controller, programmable to set as below cycle:
|
|
Vacuum system |
Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
|
Vacuum pump capacity |
60-600 L/H |
|
Fan |
Plastic centrifugal fan |
|
Safety protection devices |
Meter over-temperature function, Phase shortage protection, Power short-circuit protection |

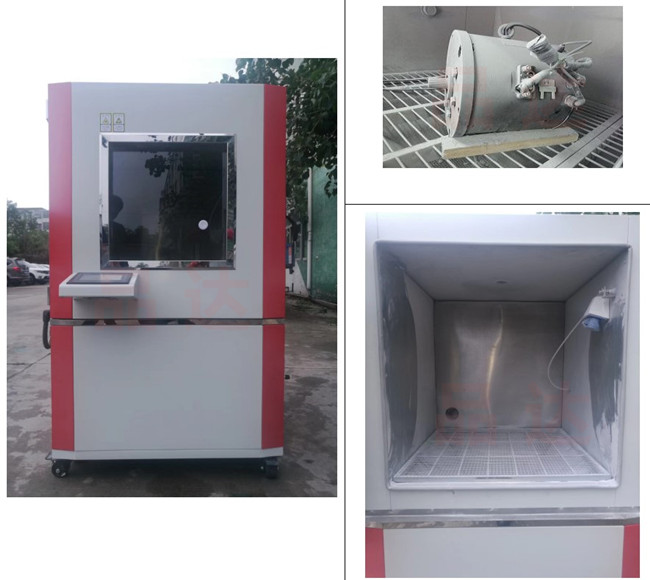

CHAMBER DESIGN FEATURES
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
