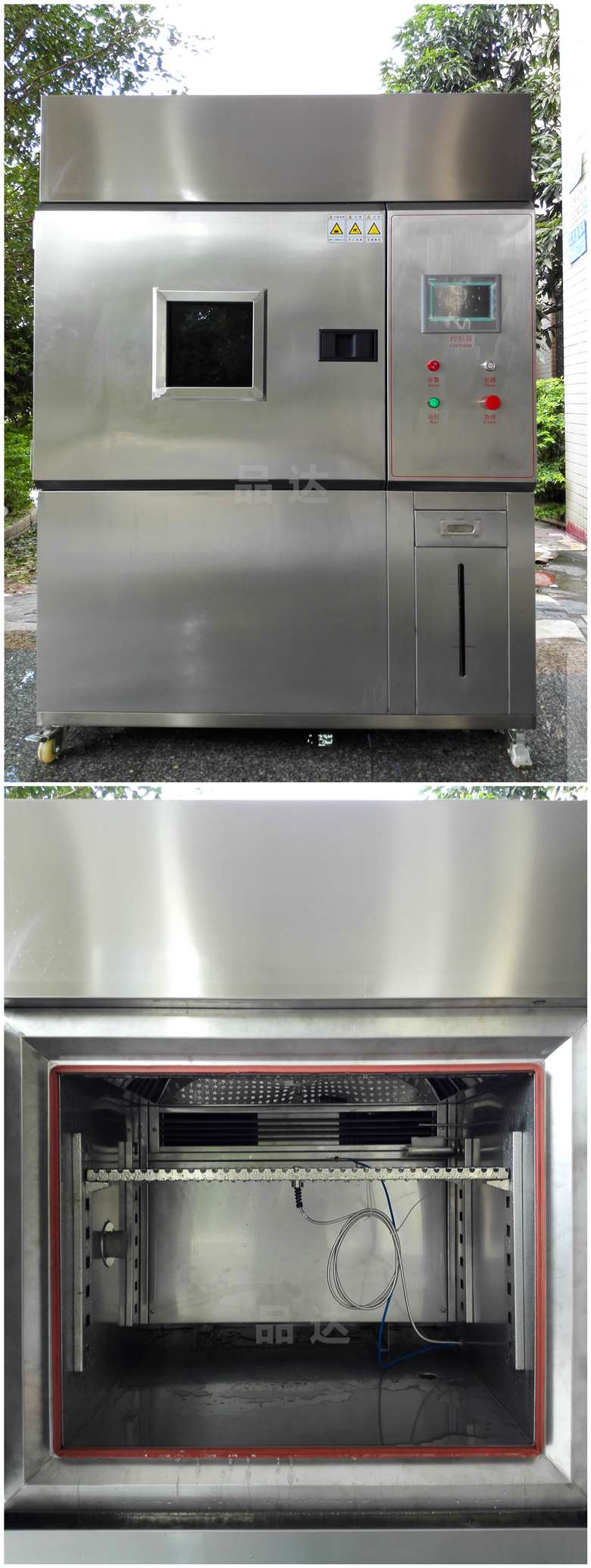

氙灯老化箱产品简介:
主要用于对非金属材料、有机材料(油漆、涂料、橡胶、塑料等)的模拟环境气候老化试验。特点:
1.内胆为高级不锈钢板制成,A3钢板色彩喷粉。
2.动态旋转样品架,转速可调。
3.触摸屏可编程控制器。
4.设有滤光观察窗,有害气体排风口。
5.双金属黑板温度计。
6.多种安全保护装置。
氙灯老化箱技术指标:
型式 Model |
MAX-SUN水冷型 Common type |
MAX-SUN风冷型 High level type |
温度范围 Temperature scope |
RT+10(室温+100C)~63℃,试验黑板温度: 65℃±3℃ RT+10(indoor temperature+10℃)~63 ℃s and experiment blackboard temperature: 65 ℃ ±3 ℃ |
|
湿度范围 Degree of humidity scope |
65±3℃ |
|
降雨时间 Rain time |
0~9999min,可调 0~9999 min, adjustable |
|
降雨周期 Rain a period |
0~240min,间隔(断)可调 0~240 min, the partition(break) is adjustable |
|
波长范围 Wave-length scope |
290nm~800nm |
|
辐照强度 The Fu shines on strength |
550W/m2 |
|
氙灯功率及寿命 The light power and life span |
6KW水冷型,寿命2000H The 6 KW water cold type, life span 500 Hs |
4.5KW水冷型,寿命2000H The 4.5 KW water cold type, the life span 2000 Hs |
内箱尺寸 Inside box size |
950×950×850㎜ |
800×800×800㎜ |
内胆材料 Inside Dan material |
SUS304#不锈钢板 Domestic SUS304 stainless steel plank |
SUS304#不锈钢板 Importing SUS304 stainless steel plank |
外壳材料 Outer shell material |
高级冷扎钢板喷粉处理 The high class cold firm steel plate sprays a powder processing |
|
样品架 Sample |
SUS304不锈钢材料,转速≤5r±2/min The SUS304 stainless steel material turn soon the ≤ 5 r ± 2/min |
铝合金材料,转速≤5r±2/min Aluminum metal alloy material, turn soon the ≤ 5 r ± 2/min |
试样与灯管距离 Try kind and light takes care of distance |
480mm有效暴晒面积6500cm cm2 The 480 mms effectively and suddenly and violently basks the area 6500cm2 |
375mm有效暴晒面积6500cm cm2 The 375 mms effectively and suddenly and violently basks the area 6500 cm cm2 |
控制仪 Control an instrument |
可编程触摸屏控制界面(国产) The programmable touch holds control interface(domestic) |
可编程触摸屏控制界面(进口) The programmable touch holds control interface(import) |
观察窗 Observe a window |
双层滤光观察窗 The double layer filters a light observation a window |
|
黑板温度计 Blackboard thermometer |
单金属黑板温度计 Single metals blackboard thermometer |
双金属黑板温度计/进口辐照度计 Double metals blackboard thermometer/the import Fu shine on a degree to account |
内外过滤片 Inside outside percolation slice |
国产 Domestic |
美国进口 The United States is importing |
电源 Power |
380V 50HZ |
|
符合标准 The sign is up to standard |
GB/T16422.4-1999 GB/T2423.24-1995 ASTM G 155-2005等 The GBs/T2423.24-1995s of the GB/T16422.4-1999 ASTM G 155-2005 |
氙灯老化箱冷冻系统:
1.冷冻系统: 欧美高效率省电型超低温冷冻系统(风冷式散热方式);
2.冷热交换系统: 超高效率SWEP冷媒冷热交换设计(环保冷媒R404A);
3.发热负载调节: 自动调整冷媒流量,有效带走发热负载散发的热量;
4.冷凝器: 鳍片式附散热马达;
5.蒸发器: 鳍片式多段式自动负载容量调整;
6.其它附件: 干燥剂,冷媒流量窗口,修理阀;
7.膨胀系统: 容量控制之冷冻系统。
氙灯老化箱保护装置
1、工作室超温保护;
2、加热器短路保护;
3、加湿器短路保护;
4、风机过载保护;
5、压缩机超压保护;
6、压缩机过载保护;
7、断水/缺水保护;
8、漏电保护;
9、安全可靠的接地装置
